Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: linso
  • Model Number: Linso P10
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 10mm
  • Resolution: 10mm
  • Bestviewing distance: 20-200m
  • Brightness: 8000cd/sq.m
  • Place applying: Stadium
  • Waterproof rate: IP66

Packaging & Delivery

Packaging Details WOODEN CASES/FLIGHT CASES
Delivery Time 20 WORKING DAYS

Detailed Product Description



Shenzhen Outdoor full Color Advertising Outdoor P10 P12 P16 Stadium LED Display screen,outdoor IP66 led screen



1. Wide Viewing Angle
2. High Refresh Rate
3. High Brightness
4. Long Life Span



P10 outdoor full color led dsiplay
1.1 LED Index

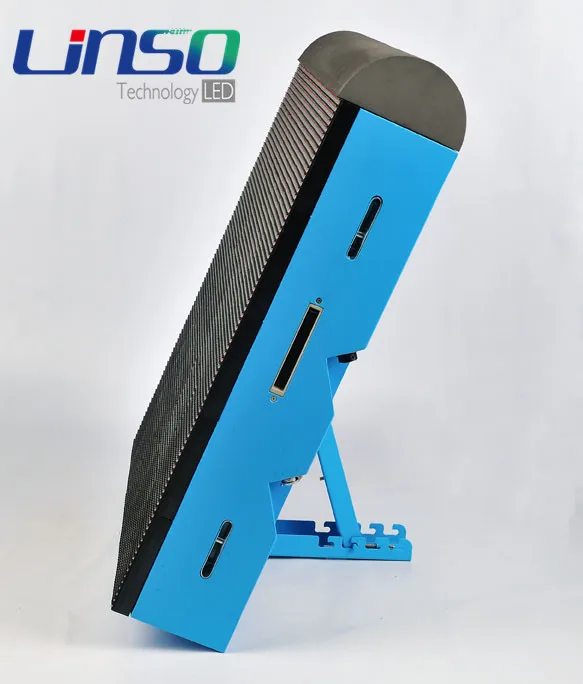

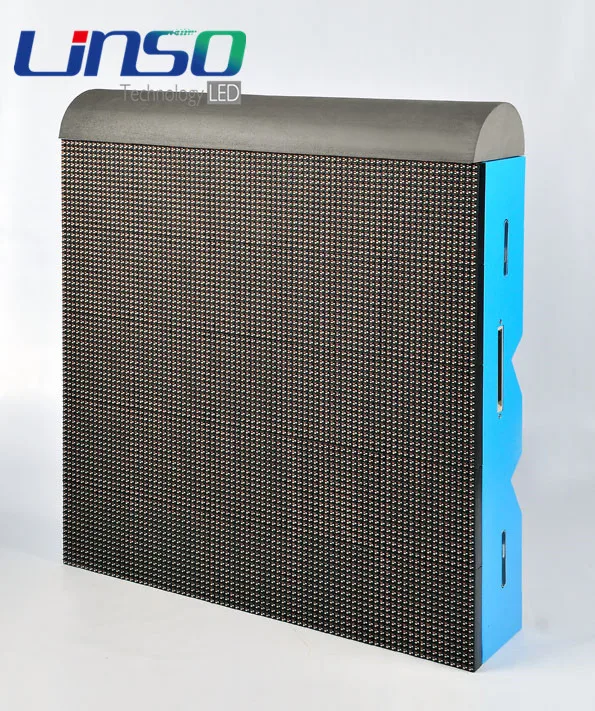

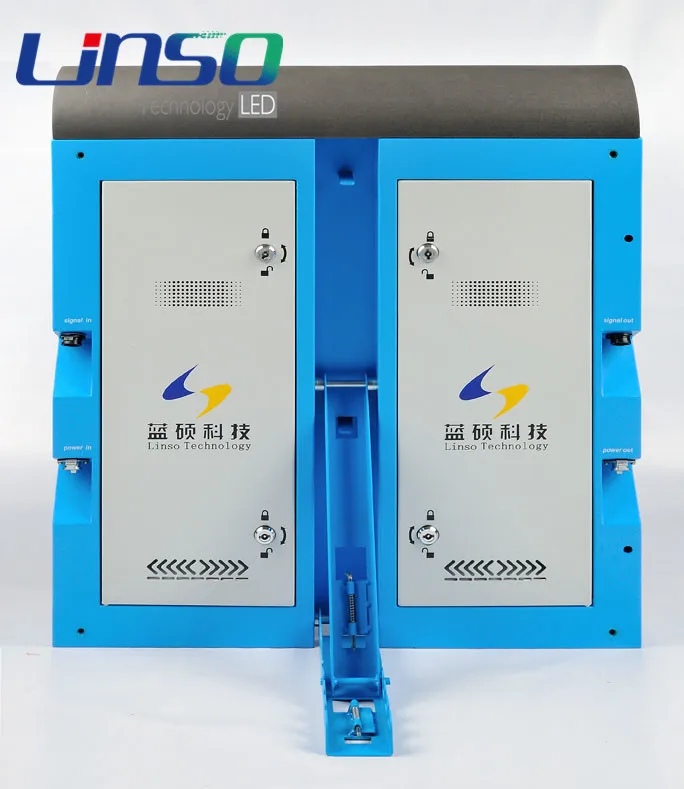

A:Structer photo
 1R1G1B
B:Professional Analysis
ItemContent
Match colors analysisR:G:B=3:6:1
1.2 Pixel Index
ColorChipIndex
RedEpistarwave:619~~624mm,brightness:800mcd
GreenEpistarwave:520~~535mm,brightness:1800mcd
BlueEpistarwave:460~~475mm,brightness:500mcd
1.3 Technology Specifications
NameTechnology Specifications
1.Physical indexPixel:10mm
Color:Red+Green+Blue
Pixel configuration:1R1PB1PG
Pixel density:2500dots/sq.m
LED type :DIP346
2 ModulePanel pixel(dots):16dots×8dots (16dots×16dots for optional)
Modul size: 160mm×160mm (320mm×320mm for optional)
3 ScreenViewing:H1100,V750
Storage temperature:-40°C~~+65°C
Operated temperature:-40°C~~+60°C
Humidity:10%-95%
Screen thickness:cabinet thickness 12cm(Back Maintenance)
Cabinet weight:45kg/sq.m
Protection:IP65
4 Power supplyPower: AC220Vor 380V
Max power consumption:1200W/sq.m average 500W/sq.m
5 Control systemComputer:DELL V230 or similar computer
Operating system:WIN7/2000/XP
Display card:DVI
Control mode:synchronization control
Refresh frequency:≥2000Hz
Grey/Color:16K,4K(Optional)/16.7M colors
Calibrate Brightness:256level adjust
Control system adopts:DVI+Master card+ Internet line
6 Main specificationsDriver:Constant current
Driver mode:Static
Frame frequency:≥60Hz
Brightness:≥7500cd/sq.m
Accepting signal:RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc
MTBF:≥1000hours;Life-span:100,000hours
Level up degree:pixel≤0.5mm;module<1mm
Uniformity:pixel and module uniformity brightness
Malfunction dot rate:<0.0001
Switch power load:5V/40A
Computer display mode:1280x1024
Control distance:internet line :100m;single mode fiber:
20km;multi mode fiber:500m
Packing(free): apply waterproof cabinet box,wooden cases packing.
N.W.45kgs/sqm
G.W.(including packing)55kgs/sqm
Total WeightsqmX55kgs/sqm=510 kgs
CBMAbout cubic meters
Others
Price termsFOB Shanghai,China.
valid time30 days
Payment termsT/T in advance, 30% deposit and the balance 70% will be paid before shipment.
Delivery time20 days.
Warranty time1year,offer the free spare parts(module & power supply) in advance.After guanrantee term,still supply spare parts with charging only materials cost.
PackingStandard wooden case packing(free),flight case packing (add US$64/sqm) to the unit price.



 Packing terms pictures:

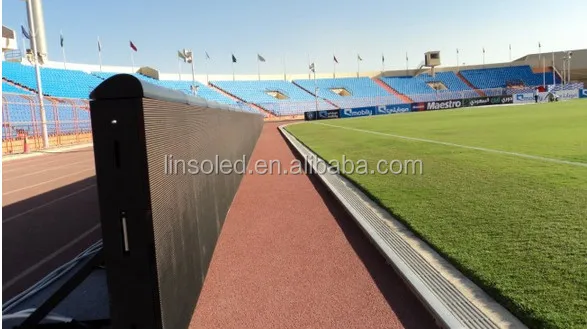

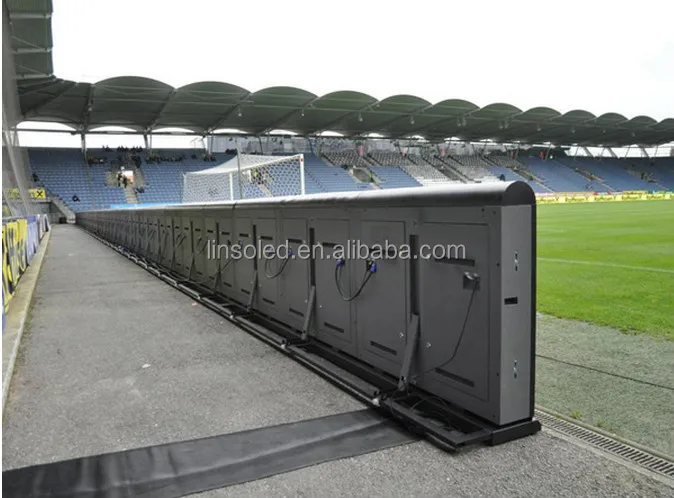

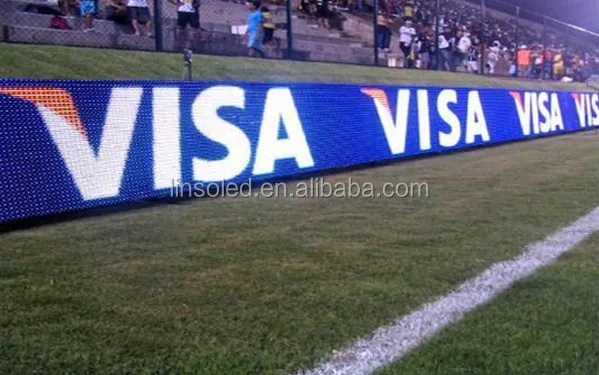

Siting drawings pictures:



 Factory and office:

1. Your inquiry will be answer in 24 hours
2.Customized LED Screens are available,OEM&ODM are welcome
3.Products are deliveried all over the world with speed and precision
4.Best price with highest quality LED Screens will be offered for you


If interested, welcome your inquiry (Factory Shanghai China)

Contactor: Mr.Jakay Yao

Skype: jakayled

Mobile: 0086 15502105736



Whatsapp:0086 15502105736
